SPDU® Smart Power Distribution Unit
Upgradable Basic+ PDU
Basic+
SPDU is the entry level Basic+ product line from RNX - never again you have to decide between a "Basic PDU" or a "Smart PDU".
Basic+ is the new Smart.
A PDU you can depend on for distributing power to critical equipment at an
accessible price, the SPDU Basic+ delivers reliable performance with simplicity
in mind. For those who need more control and insight, the SPDU Basic+ can be upgraded to unlock inlet metering and network connectivity.
How it works

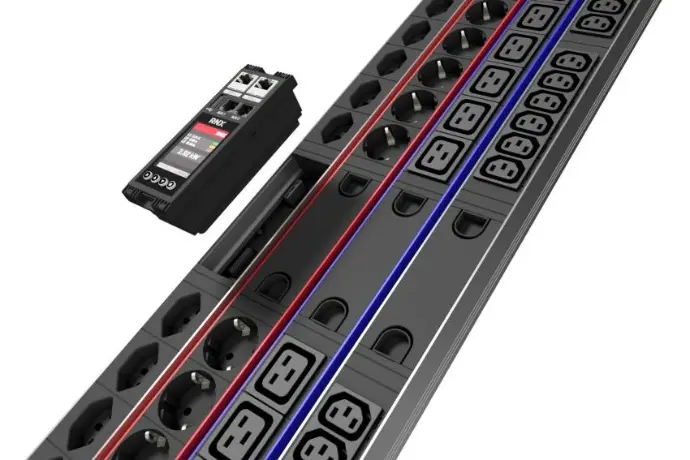

The SPDU Basic+ is built with the hardware to support advanced functions, but these remain dormant until the SPDU Controller is installed.
Upgrading is easy. Pinch the release tabs to remove the blind cover and slot in the SPDU Controller. No tools are required – simply snap out the blind cover and snap in the controller.
The process takes only seconds and can be done with just one hand.
Once connected, the SPDU Controller activates the internal inlet metering circuitry of the SPDU Basic+, enabling real-time monitoring of electrical parameters such as voltage, current, power, and energy consumption at the input source.
The SPDU Controller additionally provides the SPDU Basic+ with network connectivity, allowing remote access and monitoring via standard protocols.
This approach allows the SPDU Basic+ to be deployed initially as a cost-
effective, non-networked device, and later upgraded in the field.
A PDU you can depend on for distributing power to critical equipment at an
accessible price, the SPDU Basic+ delivers reliable performance with simplicity
in mind.
Flexible outlet configurations
In addition to the IEC C13 and C19 outlets, SPDU Basic+ can accommodate a
wide range of country specific outlets such as Schuko, NEMA, T23, UK and more
Vertical and horizontal form factors
Available in vertical and horizontal variants and supporting power capacities
from 3.6 kW to 22 kW to fit a wide range of rack and cabinet setups
Exceeding the standard conductor cross-section
Built with conductors sized one level above industry requirements to
reduce power losses, maximise uptime and extend service life
Slim aluminum profile
1U (44.5x47.5 mm), designed for high-density installation where space is
scarce
Coloured PDUs for easy identification
Available in various options, coloured PDU chassis help simplify
maintenance and troubleshooting
TwyLock® locking cable compatible
Avoid risk of accidental disconnections by pairing with TwyLock dual locking
cables
